High Efficient
High solar cell efficiency: Monocrystalline 21%
10 Solar Panels at 100W each totaling 1000W in total power output
Protection

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

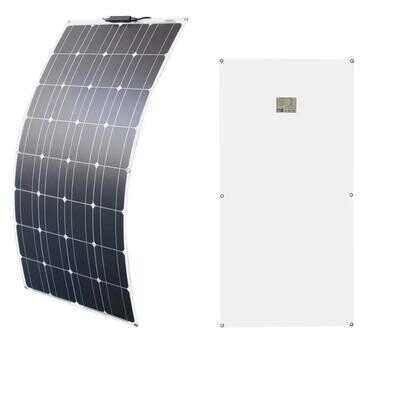

Extremely Flexible

This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream

Ultra Lightweight

Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

Super Thin

Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup

Highly Durable

Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

Electrical Characteristics

Max Power 100W
Max Power voltage 16V
Max Power Current 6.25A
Open Circuit Voltage 19.2V
Short Circuit Current 6.68A
Number of cells in Series 32
Cell size 125X125mm
Mechanical Characteristics
Dimension 1050X530X2.5mm
Weight 1.9kg(±0.1kg)
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃
